Surgical instruments have significantly advanced over time. Today, many delicately designed instruments and materials are available to assist surgeons in surgery. These present-day materials make the surgery not only swift for the surgeon but also painless for the patient. K-wires are among those cutting-edge surgical supplies that are frequently used during surgery.
A Kirschner wire (K-wire) is a thin metallic wire or pin. Surgeons typically use K-wires for stabilizing bone fragments. Bone fragments can be held in place by drilling holes through these wires. Furthermore, they can be implanted percutaneously or buried beneath the skin.
K-wires are extremely useful in minimally invasive surgeries. However, every story has two sides, and the matter is the same with the use of K-wires. In this article, we will go over both aspects in depth.

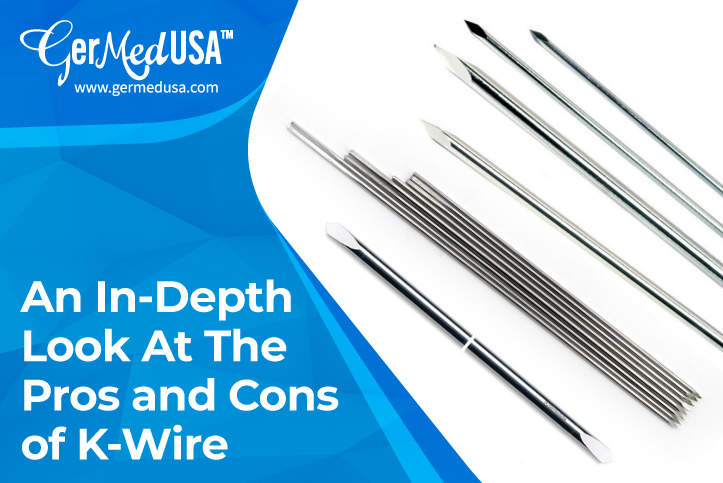

What is a K-Wire?
A K wire, also called a Kirschner wire, is a thin stainless steel wire or pin used in orthopedic surgery to keep broken bones or bone fragments in place while they heal. It is commonly used for fractures in small and delicate bones such as those in the hands, fingers, feet, and wrists. The wire is inserted into the bone using a surgical drill and may stay under the skin or protrude outside the skin for easier removal. K-wires are high in demand because they are simple to use, reliable, and support proper bone alignment with minimal damage to surrounding tissues.
Types of K-Wires Used in Surgery
K-wires are categorized based on their tip design, surface style, diameter, length, material, and surgical applications. Different sizes of K-wires are available in the market for different surgical purposes. Here are some common types of K-wires used in surgery.
K-Wires Single Trocar
The K-wire single trocar has one sharp pointed (trocar) end and one blunt end. It is made of stainless steel and used for controlled insertion into bone during fracture fixation and alignment procedures.
Key Features:
• One sharp trocar tip for bone entry
• One blunt end for safer handling
• Allows controlled directional insertion
• Stable placement in small bone fixation
Applications:
• Fixation of finger bone fractures
• Stabilization of metacarpal injuries
• Alignment of small foot bone fractures
K-Wires Double Trocar
This is a stainless steel K wire with sharp points on both ends, used for bone fixation where insertion from either direction is needed.
Key Features:
• Sharp tip on both ends
• Smooth passage through the bone cortex
• Allows bidirectional placement
• Suitable for the quick insertion technique
Applications:
• Fracture fixation in hand bones
• Temporary stabilization of wrist injuries
• Foot and toe bone alignment procedures
K-Wires Single Diamond Round
The K-wire single diamond round comes with a diamond-shaped cutting tip on one end and a rounded trailing end, designed for precise entry into bone.
Key Features:
• Diamond-shaped cutting tip
• Rounded end for controlled passage
• Precise bone entry path
• Reduced tissue disruption during insertion
Applications:
• Small bone fracture fixation in fingers
• Metacarpal alignment procedures
• Facial bone stabilization in oral and maxillofacial surgeries
K-Wires Double Diamond Round
This is a K-wire with diamond-shaped tips on both ends and a rounded body, used in procedures requiring strong entry control from either side.
Key Features:
• Diamond cutting tips on both ends
• Controlled penetration
• Flexible insertion direction
• Stable positioning during placement
Applications
• Complex hand fracture fixation
• Multiple fragment stabilization in small bones
• Orthopedic correction in wrist injuries
K-Wires Single Trocar Threaded
The K-wire single trocar threaded is a wire or pin with one sharp trocar tip and a threaded section that improves grip within bone.
Key Features:
• Single sharp trocar tip
• Threaded segment for bone grip
• Reduced migration after placement
• Smooth shaft for easier advancement
Applications:
• Fracture fixation in long bones
• Hand and wrist stabilization procedures
• Temporary fixation in foot surgery
K-Wires Double Trocar Threaded
A threaded type of K-wire with sharp trocar points at both ends, designed for stable fixation and flexible insertion.
Key Features:
• Sharp points on both ends
• Threaded surface for bone hold
• Suitable for dual-direction insertion
• Strong positional stability inside the bone
Applications:
• Complex fracture stabilization
• Orthopedic reconstruction of small joints
• Fixation in multi-fragment bone injuries
The Two Sides of K-Wire Explained
The K-wire surgical technique is an advanced treatment for bone fractures. K-wires are available in different sizes to meet the needs of a particular situation. In addition, K-wires are frequently used to stabilize a broken bone and are easily removed once the fracture has healed. Continue reading to learn about the benefits and drawbacks of K-wires.
Uses of K-wires in Surgery
K-wires have a versatile use in surgery. In addition, there are many advantages to using these in surgery, such as:
Less invasive
K-wires are a new method for fracture stabilization and reconstruction procedures. K-wire surgery is less invasive than previous procedures. They treat bone fractures without using heavy materials like plates and screws. Fractures can be treated with minimally invasive manipulative reduction with poking K-wire fixation.
Rapid recovery
A fracture is a common type of trauma that causes significant morbidity. Unfortunately, the available conservative treatments are associated with lengthy periods of immobilization. Flexible K-wire implants allow for early fracture rehabilitation.
A K-wire is inserted through the broken bones to keep them in place until they heal. The bones are usually healed enough after 4-6 weeks for the wires to be removed. Although the recovery time for a fracture depends upon its severity, K-wires have been observed to have a quick recovery time.
Cost-effective
Thus, offering a less expensive alternative in the form of K-wires may be advantageous for patients with low socioeconomic status. Using K-wires significantly reduces treatment costs. K-wire fixation is a 'cost-saving' intervention with equivalent health benefits compared to other bone fixation methods.
Fewer complications
Complications with smooth K-wire fixation in the hand and wrist are relatively uncommon. The main advantage of treating a finger with closed reduction and K-wire fixation is that there is no scarring from surgical dissection. In addition, there is no permanent internal hardware to take up space and limit movement. K-wires provide functionally stable fixation as well.
Problems Associated With K-wires
Although K-wires have many advantages, there are some drawbacks to their use. Surgeons must also consider these complications. The use of K-wires may result in the following problems:
Infection
The pin insertion site could be a point of entry for infection into the body. Bacteria can enter the body through the skin and travel along the pin tract, potentially reaching the bone. As a result, patients with exposed K-wires are typically instructed on pin care techniques to prevent infection.
Breakage
Pins can provide stable fracture fixation, but most pins are small in diameter. As a result, there is always the possibility that they will break if the broken bone is subjected to additional stress. They may also bend or break if the fracture does not heal properly.
Migration
Pin migration is one of the most concerning complications. K-wire migration can occur when the wire moves deeper instead of backing out. As a result, extreme caution is required, mainly when using K-wires in the chest or abdomen. Although rare, there have been reports of K-wires being placed in bones around the shoulder and then migrating to the chest cavity later.
K-Wire Maintenance Tips for Medical Professionals
Surgical K-wires need proper handling and care to maintain their function during surgical use. Medical staff should pay close attention to basic maintenance protocols to avoid damage and corrosion.
Here are some important K-wire maintenance tips for medical professionals.
• Check for any bends, corrosion, or surface wear before use
• Maintain strict sterile handling during preparation and placement
• Avoid excessive bending while inserting into the bone
• Ensure protruding ends are secured to prevent movement or injury
• Clean thoroughly after use and store in a dry, sterile environment
• K-wire treatment and maintenance should follow strict sterilization protocols
Proper maintenance practices support consistent performance in surgical procedures and reduce the chance of instrument failure during use.
Why Should You Buy from Us?
GerMedUSA has been designing and manufacturing surgical instruments for over three decades, delivering reliable tools trusted across medical fields. We focus on precision, durability, and consistent performance in every product.
• Direct manufacturer with strict quality control
• Customization options to match specific needs
• Wide range covering orthopedic, dental, and general surgery
• High-grade stainless steel manufacturing for lasting use
• Consistent quality across all batches
• Support for bulk and institutional orders
• Global supply to hospitals, clinics, and distributors
GerMedUSA continues to provide dependable instruments built for precision and long-term use. We are not like other suppliers; we manufacture and own our products
Conclusion
To conclude, K-wires are highly beneficial but also have some drawbacks. When using these, surgeons should weigh the benefits and drawbacks. Furthermore, the risks and benefits vary depending on the situation, which only surgeons can assess. GerMerUSA may be a good option if you're looking for high-quality K-wires.
At GerMedUSA Inc., we offer high-end medical surgical instruments. Furthermore, our experience makes us more reliable in this industry. We have been manufacturing and supplying surgical instruments for over three decades now. If your preferences differ, we are willing to manufacture customized instruments on demand for you.
Frequently Asked Questions
What is the use of a K-wire?
Kirschner wires (K-wires) are stiff, straight wires occasionally required to repair a fracture. If a person has a fracture that requires surgery, K-wires may be used to keep the bones in place until they heal.
Is removing K-wires painful?
The removal of the K-Wires is quick and may feel strange, but it is usually not too painful. Next, dressings will be applied to the small wounds, which may bleed slightly. The patient will be advised on how long these dressings should be left on and whether they require additional dressings.
What is another name for the K-wire?
Another name for a K wire is Kirschner wire.
What is the K-wire removal time?
K-wire removal time depends on the type of fracture, bone healing speed, and surgical procedure. In most cases, K wires are removed once the bone has gained enough stability. Smaller fractures in fingers or toes may heal sooner, while larger or more complex injuries can take longer. The surgeon usually confirms healing through follow-up examinations or X-rays before removing the wire.
What is the recovery time after K-wire removal in adults?
Recovery after K-wire removal in adults is usually quick and depends on the fracture type and healing. Most people feel better sooner, though mild stiffness or soreness may last a bit longer. Normal activities return gradually, while full strength can take 3 to 6 weeks.
Do you need a cast after K-wire removal?
Not always. After K-wire removal, a cast is only used if the bone still needs extra support. In many adult cases, if the fracture has already healed well, a cast is not needed, and the area is managed with light support or a splint for a short time. Some stiffness or weakness may still be present, so movement is usually increased gradually based on healing progress.
What is the difference between a threaded and an olive K-wire?
A threaded K-wire has screw-like helical grooves on the surface that grip the bone and reduce movement after placement. Whereas an olive K-wire has a small bead (olive) that acts as a stopper to help hold or compress bone fragments in position.
Is the K-wire permanent or temporary?
A K wire is temporary. It is used to hold bones in position while they heal and is usually removed once the bone has gained enough stability, often after a few weeks.
How long does K-wire surgery take?
K-wire surgery usually takes about 30 minutes to 2 hours. Simple fractures in small bones like fingers or toes are often completed in less time, while more complex injuries or multiple wire placements can take closer to an hour.
Is K-wire fixation painful?
K-wire fixation is usually not painful during the procedure because it is done under local, regional, or general anesthesia. After the procedure, some discomfort is common once the anesthesia wears off. This can include mild to moderate soreness, swelling, or tenderness around the insertion site for a few days. The discomfort usually settles gradually as healing progresses and is managed with routine pain relief and rest.
