When you step into an operating room, every instrument matters, but few are as underestimated yet mission-critical as the abdominal retractor. Most professionals, even seasoned ones, don’t realize how many types of abdominal retractors are available or how selecting the right one can shape the success of abdominal procedures. Let’s change that.
These instruments quietly do the hard work: holding layers of muscle and tissue apart so surgeons can focus, operate, and save lives. In this guide, we explore the types of abdominal surgical retractors.
You'll learn what sets them apart, when to use each type, and how these instruments silently power the precision of every abdominal incision.
What is an Abdominal Retractor?
An abdominal retractor is a specialized surgical instrument that is used to retract the walls of the abdomen during surgical procedures. The abdominal retractors open the incision edges and hold back the tissues and organs to facilitate a clear surgical site. The design of an abdominal retractor depends on whether the instrument is handheld, self-retracting, or table-mounted. Usually, the handheld retractor body has basic components such as a blade, shaft, and handle. Self-retracting abdominal retractors have additional prongs and a ratchet box locking mechanism. Choosing the type of surgical retractor solely depends on the nature of surgery and its requirements.
How Does an Abdominal Retractor Work?
An abdominal retractor works by gently pulling the edges of a surgical incision and nearby tissues away from the operative site. This creates an open, stable working area that allows the surgeon to access internal organs without repeatedly moving tissues by hand. The retractor blades are positioned along the edges of the abdominal incision. These blades are gradually opened to separate tissues and widen the surgical opening. Handheld retractors are held by an assistant, while self-retaining retractors lock into place and maintain steady retraction.
The instrument keeps the incision open throughout the procedure, providing continuous exposure and reducing the need for repeated tissue manipulation. Once the surgery is finished, the retractor is released and removed before the incision is closed. This controlled retraction improves visibility, provides easier access to deep abdominal structures, supports more precise surgical movements, and helps minimize unnecessary tissue trauma
Quick Comparison of Common Abdominal Retractors
Here’s a quick comparison of commonly used abdominal retractors focusing on their type, uses, and functionality.
| Abdominal Retractor | Type | Best Used For |
Self-Retaining |
| Gosset Abdominal Retractor | Self-retaining | Lower abdominal procedures, urology, gastrointestinal surgery, and exploratory laparotomy |
Yes |
| Fritsch Abdominal Retractor | Handheld | Open abdominal procedures, vascular surgery, and operations requiring exposure in tight spaces |
No |
| Franz Abdominal Retractor | Self-retaining | Colorectal surgery, appendectomy, bariatric surgery, and wide abdominal exposure |
Yes |
| O'Sullivan O'Connor Abdominal Retractor | Self-retaining, ring style | Cesarean sections, hysterectomy, pelvic surgery, and tumor removal |
Yes |
| Collin Abdominal Retractor | Self-retaining | General, gynecological, urologic, and deep abdominal procedures, including bowel resection |
Yes |
| Balfour Abdominal Retractor | Self-retaining, table-mounted | Exploratory laparotomy, gastrointestinal surgery, trauma surgery, pelvic surgery, and C-sections |
Yes |
| Balfour Abdominal Retractor with Ratchet | Self-retaining, ratchet-locking | Colorectal, gynecological, bariatric, and other procedures needing adjustable retraction |
Yes |
| Balfour Self-Retaining Adjustable Abdominal Retractor | Self-retaining, adjustable | Open abdominal and pelvic surgeries requiring adjustable, stable exposure |
Yes |
Why the Right Abdominal Retractor Isn’t Just a Choice
You can’t fix what you can’t see. That’s why abdominal surgical retractors are more than just metal instruments; they’re extensions of surgical vision. Choosing the wrong retractor can lead to increased fatigue, reduced efficiency, and may even worsen patient outcomes.
Here's why these instruments are essential:
• Create sustained, broad exposure of the abdominal cavity
• Reduce the need for manual assistance during long surgeries
• Protect internal organs from trauma or pressure
• Minimize tissue handling and contamination risks
• Enable safer and more efficient procedures
But to unlock these benefits, one must understand the different types of abdominal retractors and their specific clinical uses during different surgical procedures.
Types of Abdominal Retractors You Should Know
Below is a breakdown of key abdominal retractor types, including self-retaining and handheld designs, along with their respective surgical purposes.

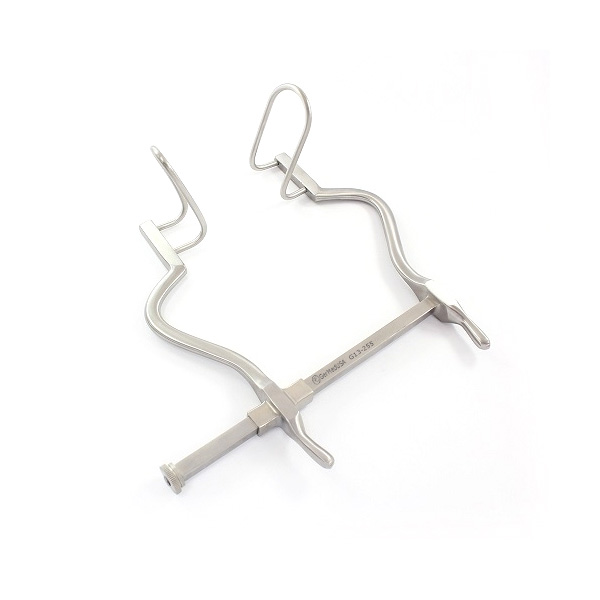

1. Gosset Abdominal Retractor
A minimalist yet robust design for general surgery
The Gosset Abdominal Retractor is a self-retaining retractor instrument that creates moderate retraction in lower abdominal procedures. It features two lateral blades and a central blade that can be adjusted manually to maintain the surgical field. Its open-frame design minimizes crowding at the surgical sites.
Uses:
• Provides reliable retraction in lower abdominal procedures.
• Commonly used in urology, gastrointestinal surgeries, and exploratory laparotomies.
Here are the key attributes of the Gosset Abdominal Retractor:
• Self-retaining with tension adjustment
• Excellent for general surgeries or initial exposure
• Lightweight yet durable
• Open-frame design reduces crowding in the operative area.

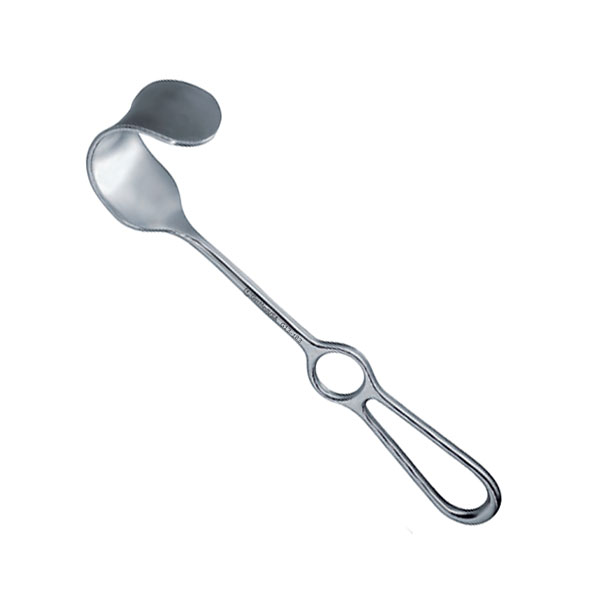

2. Fritsch Abdominal Retractor
Precision-crafted for steady exposure in mid-sized incisions
The Fritsch Abdominal Retractor is compact, featuring a deep blade curvature that provides superior control over delicate tissue separation. It features hollow handles for reduced instrument weight, making it easy to maneuver throughout longer procedures.
Uses:
• Provides controlled retraction in open abdominal operations.
• Ensures clear visibility in tight surgical spaces.
• Commonly used in both general and vascular surgeries.
Fritsch Abdominal Retractors have the following attributes:
• Usually 9.5" in length, allowing deep reach
• Curved blades for anatomical conformity
• Ideal for open abdominal operations that require visibility in tight spaces
• Useful in both general and vascular surgeries
3. Franz Abdominal Retractor
Efficient, space-saving design with multi-blade precision
Franz Abdominal Retractors are known for their eight-blade, foldable structure, which allows for uniform, circumferential retraction. This self-retaining retractor is often used when a stable and wide exposure of the abdominal cavity is needed, but space constraints prevent the use of larger systems.
Uses:
• Provides broad, circumferential exposure with minimal repositioning.
• Helps in procedures where physical space restrictions hinder the use of larger retractors.
• Usually used in colorectal surgeries, appendectomies, and bariatric surgery.
Here are the key attributes of the Franz Abdominal Retractor:
• Fold-flat feature for compact storage
• Covers a broad area with minimal repositioning
• Preferred in colorectal, appendectomies, and bariatric cases
• Saves valuable OR space while enhancing control

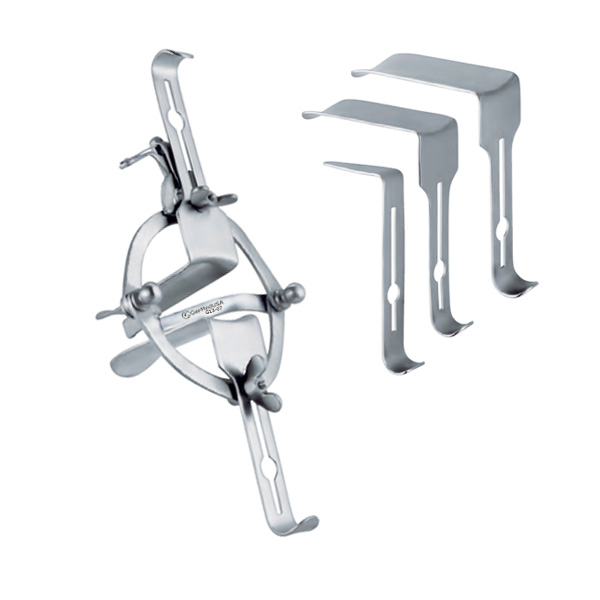

4. O'Sullivan-O'Connor Abdominal Retractor
A gynecological standard for hands-free pelvic access
O'Sullivan-O'Connor Abdominal Retractor is designed specifically for OB/GYN procedures. This self-retaining ring-style retractor offers gentle retraction and anatomical harmony. It includes lateral and anterior blades that can be adjusted individually to accommodate variations in pelvic anatomy.
Uses:
• Has excellent visualization and access in gynecologic and pelvic surgery.
• Routinely utilized in C-sections, hysterectomies, and tumor removal.
• Ensures hands-free retraction in midline vertical incisions.
O'Sullivan-O'Connor Abdominal Retractor has the following attributes:
• Blade shapes match pelvic curvature
• Used in C-sections, hysterectomies, and tumor removals
• Maintains exposure without tiring assistants
• Excellent visualization in midline vertical incisions

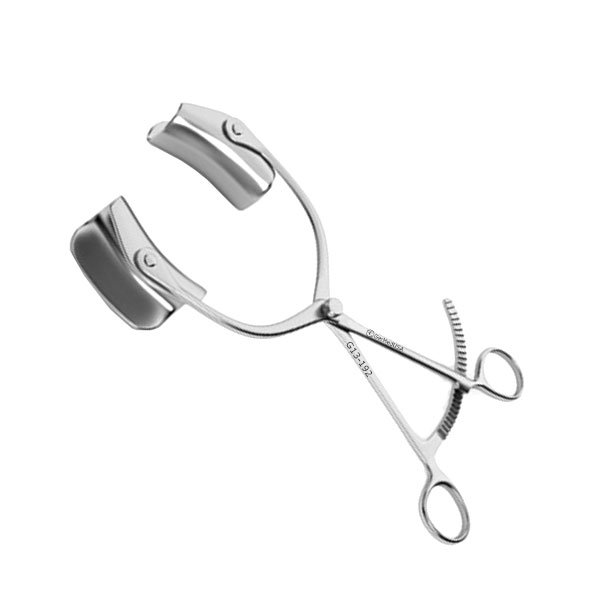

5. Collin Abdominal Retractor
Dual-swivel design for dynamic surgical control
The Collin Abdominal Retractor is a two-blade system, where each blade can swivel independently, providing surgeons with pinpoint access to abdominal organs. It’s particularly beneficial when the retraction angle needs to be adjusted without removing the instrument.
Uses:
• Provides secure retraction for deep abdominal operations.
• Commonly used in general, gynecological, and urologic surgeries.
• Helps reduce the need for extra assistants.
Here are the key attributes of the Collin Abdominal Retractor:
• Swivel blades adapt during surgery
• Effective in bowel resections and exploratory procedures
• Compact yet provides wide-angle access
• Less intrusive in the operative field
6. Balfour Abdominal Retractor
A heavyweight, go-to retractor for open surgeries
The Balfour is a table-mounted, self-retaining powerhouse. It features lateral blades and an optional center blade, all of which are adjustable to provide a stable and wide operating field. Available in adult and pediatric configurations, the Balfour is used in high-exposure cases like bowel surgeries and trauma laparotomies.
Uses:
• Provides consistent retraction in abdominal and pelvic surgeries.
• Ideal for C-sections, exploratory laparotomies, and GI surgeries.
• Ensures clear visibility of deep structures.
Balfour Abdominal Retractor has the following attributes:
• 7" spread with deep blades
• Stainless steel build ensures rigidity and reliability
• Pediatric variants are available for smaller patients
• Reduces assistant fatigue and maintains consistent exposure

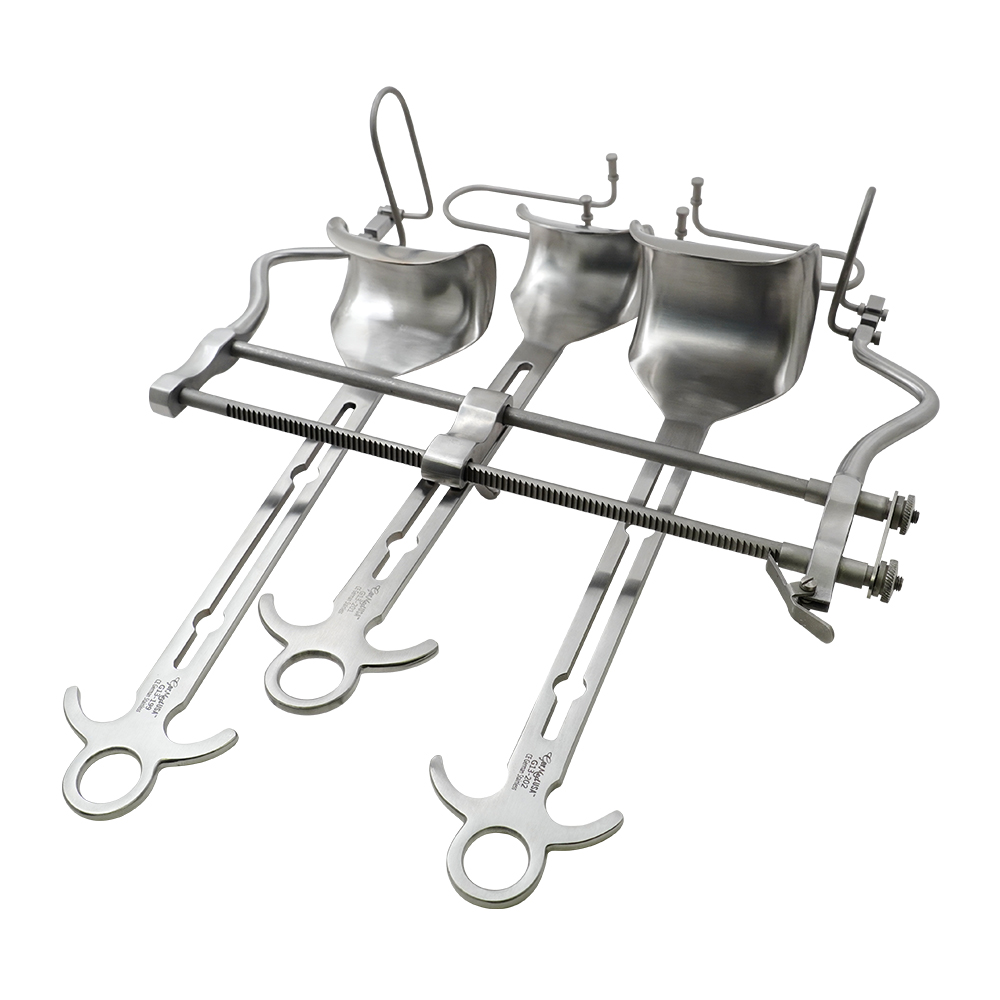

7: Balfour Abdominal Retractors With Ratchet
Balfour Abdominal Retractors with Ratchet are versatile instruments used in numerous abdominal surgeries. These retractors are available in lengths ranging from 5 1/4 inches to 20 inches, featuring a self-retaining mechanism and two pairs of interchangeable open-ended blades.
Uses:
• Especially valuable in surgeries requiring fine adjustment of retraction.
• Common in colorectal, gynecological, and bariatric operations.
• Keeps the surgical site stable during lengthy procedures.
These abdominal retractors have the following key features:
• Made with German stainless steel
• Sterilizable and reusable
• Available in multiple variations
8: Balfour Abdominal Retractor Self Retaining Adjustable
The Balfour Abdominal Retractor self-retaining adjustable is designed to hold the skin apart and lock it in place. This instrument is available in several variations, allowing you to select one that meets your surgery's specific requirements. It is made of German stainless steel, making it sterilizable, durable, and resilient.
Uses:
• Provides customizable retraction for complex abdominal and pelvic surgeries.
• Useful in procedures with irregular incision shapes or varied exposure needs.
• Ensures surgeons can adapt quickly during unexpected surgical challenges.
This self-retaining adjustable retractor has the following key features:
• Manufactured with German stainless steel forged
• Two Additional Sets of Side, Center Blades
• Available in multiple variations
Handheld vs. Self-Retaining Abdominal Retractors
Abdominal retractors work on two basic principles: handheld retraction and self-retraction.
A handheld abdominal retractor requires a surgical assistant who holds the instrument throughout the procedure. Its blades gently open the edges of the incision and move surrounding tissues or organs aside. This gives the surgeon a clear view of the surgical site.
A self-retaining abdominal retractor, on the other hand, stays in place on its own. It uses a ratchet locking mechanism to hold the blades at the desired width, allowing continuous retraction without someone holding it. This leaves the surgical team free to focus on other tasks while maintaining consistent exposure of the operative field
How to Choose the Right Abdominal Retractor?
Choosing the right abdominal retractor can be intimidating, considering the vast array of options. The correct choice, however, is key to safe, effective, and efficient surgery.
Factors to Consider:
• Depth of exposure required
• Self-retaining vs. handheld need
• Soft tissue fragility or resilience
• Space limitations in the operative field
• Duration of procedure
Moreover, make sure to choose the abdominal retractor according to a surgical need or requirement:
| Surgical Need | Suitable Type of Retractor |
| Moderate retraction in general surgery | Gosset Abdominal Retractor |
| Deep cavity access in confined spaces | Fritsch Abdominal Retractor |
| Broad multi-directional exposure | Franz Abdominal Retractor |
| Pelvic/gynecological procedures | O’Sullivan–O’Connor Abdominal Retractor |
| Targeted, adjustable organ retraction | Collin Abdominal Retractor |
| Wide, stable field for open surgeries | Balfour Abdominal Retractor |
| Ideal for complex surgical spaces | Balfour Abdominal Retractor with Ratchet |
| Ideal to hold the skin apart and lock it in place | Balfour Abdominal Retractor Self-Retaining Adjustable |
Choosing the right abdominal retractor can be daunting. But the correct choice is key to safe, effective, and efficient surgery
Common Surgical Procedures That Use Abdominal Retractors
As the name indicates, abdominal retractors are used to retract abdominal incisions and tissues during surgeries. The most common procedures that use abdominal retractors include the following:
• Exploratory laparotomy
• Bowel resection
• Colorectal surgery
• Appendectomy
• Hernia repair
• Cesarean section (C-section)
• Hysterectomy
• Gynecological tumor removal
• Urologic surgery
• Trauma surgery
• Bariatric surgery
• Liver surgery
• Gallbladder surgery
• Gastric surgery
• Pancreatic surgery
• Kidney surgery
Common Mistakes to Avoid When Using Abdominal Retractors
Abdominal retractors are used for delicate surgical procedures. Handling it wrong can compromise the surgical outcome and your credibility as a surgeon.
Here are common mistakes to avoid when using abdominal retractors.
• Applying excessive retraction force, which can injure muscles, nerves, or blood vessels.
• Choosing a retractor that is too large or too small for the incision.
• Positioning the blades incorrectly, leading to poor exposure or unnecessary pressure on organs.
• Leaving the retractor in one position for an extended period without checking tissue tension.
• Failing to adjust the blades as the procedure progresses.
• Locking self-retaining retractors too tightly, creating excessive tissue strain.
• Using worn, damaged, or improperly sterilized instruments.
• Overlooking nearby structures such as nerves, blood vessels, or delicate organs during retraction.
• Removing the retractor abruptly instead of releasing tension gradually.
• Neglecting routine inspection and maintenance of the instrument before use.
Care And Maintenance Tips for Abdominal Retractors
Even the highest quality surgical abdominal retractors won’t perform well if not properly cared for. Here are the essential care & maintenance tips for abdominal retractors:
• Immediately rinse post-surgery to remove blood/debris
• Use enzymatic detergents for deep cleaning
• Inspect hinges, locking arms, and blade tips
• Lubricate joints on self-retaining models
• Store properly to prevent scratches or warping
Regular maintenance ensures your retractors stay safe, sterile, and ready to perform, case after case.
Final Words
At GerMedUSA, we understand that a retractor isn't just an instrument; it's your partner in precision. That’s why we offer a high-end collection of different types of abdominal retractors, manufactured with surgical-grade stainless steel and honest feedback from OR professionals.
Whether you’re looking for adaptable systems, such as the self-retaining stability of the Balfour or the everyday reliability of the Fritsch retractor, our instruments are built to exceed expectations in every surgery, every time.
Explore our collection of abdominal surgical retractors and discover why surgical professionals worldwide, especially in the USA, trust GerMedUSA. Because when it comes to retraction, excellence isn’t optional.
FAQs
What are the primary uses of abdominal retractors?
Abdominal retractors hold the incision open and keep organs and tissue gently out of the way, giving the surgeon a clear view and easy access to the surgical site. They also help reduce accidental tissue damage during long procedures. Without them, even simple abdominal surgeries would be far riskier and slower.
How many types of abdominal retractors are commonly used?
There are two main categories: handheld retractors, such as Deaver and Richardson, and self-retaining retractors, such as Balfour. Within these, several designs vary by blade shape, depth, and how they hold tissue in place. The right choice depends on the type of surgery, incision size, and the amount of exposure needed.
Which abdominal retractor name is most commonly used in general surgery?
The Balfour retractor is one of the most widely used self-retaining retractors in general and abdominal surgery. It's popular because it holds the incision open hands-free, letting the surgical team focus on the procedure itself. Richardson retractors are also very common for smaller, handheld exposure needs.
Are abdominal surgery retractors reusable?
Yes, most metal abdominal retractors are reusable and designed to withstand repeated sterilization cycles in an autoclave. Hospitals typically inspect them regularly for wear, cracks, or loose joints before every use. Some disposable plastic versions exist too, mainly for single-use or cost-sensitive settings.
How do I choose between handheld and self-retaining retractors used in abdominal surgery?
Handheld retractors work best for short procedures or when you need flexible, real-time adjustments during surgery. Self-retaining retractors are ideal for longer operations since they free up hands and maintain steady exposure without assistance. The choice really comes down to incision size, surgery duration, and how many team members are available to assist.
